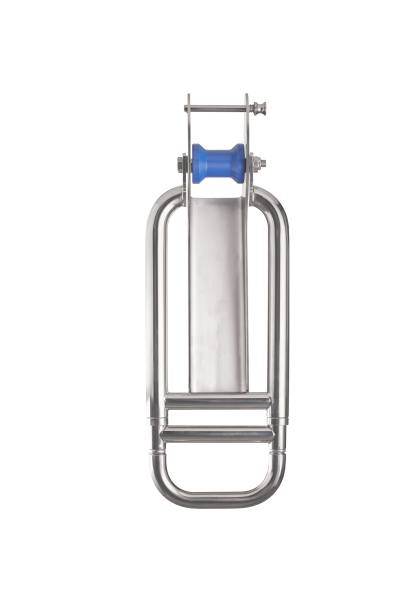

Ascend 3 Step Extendable (Large)

Ascend 3 Step Extendable (Large)

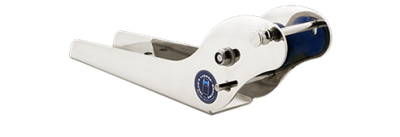

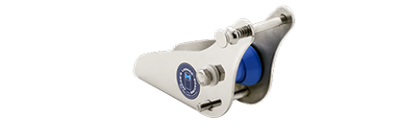

The ‘ASCEND –3STEP EXTENDABLE’ (Large) ‘bow access’ ladder typically comes with either our longer and wider ‘Tournament’, ‘Mark 2′, ‘Ascend Standard’ bowsprit roller frame and is suitable for boats with above-average bow heights and boat length upwards of 6m and potentially suitable for craft well beyond 6m in length depending on their bow configuration, anchor size and/or anchor retrieval assembly.

As is the case with the other Jacob’s Ladder versions this ladder when deployed rotates on the bow-roller axle, folding forward from its stowed and retracted (pulled-in) position on the boat’s deck (retracted length 550mm) to a solid-fixed position and sitting outwards at a 100 angle from the vertical.  The Ascend 3Step (large) extends downwards to its full length of 950mm providing a totally firm feeling underfoot as well as a more direct access pathway through the bow rails and into the boat. It is the angled and solid-fixed aspect of each of the ‘bow access’ Jacob’s Ladders when deployed, along with their full integration into the bowsprit roller frame which are their unique features.

SKU: N/A Category:

Description

  • Ascend 3 Step Extendable (Large)
    • All metal components (tubular assembly as well as bowsprit roller frame) constructed of 316L marine grade stainless steel.
    • All Jacob’s Ladders are 100% Australian designed, made and assembled
    • All ladders are supplied with:-

    — 4 x M10 x 40mm 316 grade fully threaded button-head bolts with Nylocs for deck fixing

    — 4 x M10 x 3mm 316 grade large flat washers for under-deck support

    — PVC gasket (to separate stainless roller frame from contact with deck where boat is of aluminium construction)

    — Three self-adhesive ‘deck grip pads’ (for optional cover on stainless rungs where considered desirable)

    — Owners ‘Instruction Manual’

Additional information

Weight7 kg
Dimensions670 × 250 × 160 mm
Ladder Dimensions & Weight

Note: Package dimensions and weight listed above.

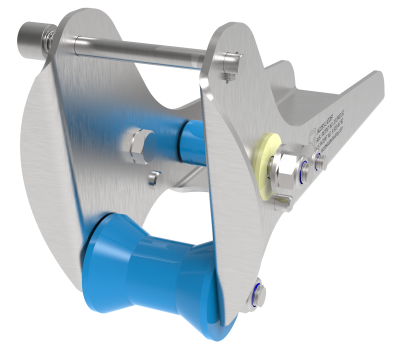

Bow Roller Frame

130mm x 60mm frame-to-deck surface connection area. Please contact us to enquire about the smaller frame.

Note: The roller frame shape extends out beyond the 130mm base to help prevent potential damage to the bow surface as the anchor is being retrieved

Maximum weight permissible for personnel boarding

120 Kilograms

Warranty Policy

3 years warranty subject to proper maintenance and care of the ladder consistent with Jacob’s Ladder Ascend product user guide. The Jacob’s Ladder Ascend product user guide supplied with your ladder provides detailed information on attaching the ladder, maintenance and responsible care instructions, as well as the warranty and returns policy.

Additions

Ladder with SWIVEL, Ladder with GRAB HANDLE
